LED Lamp Beads White Light Chip, 1W Watt High Power LED, Epistar SMD LED Chip, Light LED Diode, Chip LED 1W 3000K
This high-brightness, surface-mount LED features a copper lead frame and a silicone dome lens. Designed for diverse industrial electronics, its color temperature ranges from 2800K to 3200K. Rigorous reliability tests, including temperature shock and high-temperature aging, guarantee excellent stability, heat conduction, and light output.
| Emitting Color | Warm White |
|---|---|
| Color Temperature | 2800–3200 K |
| Forward Current | 350 mA |
| Forward Voltage | 3.0–3.4 V |
| Luminous Flux | 140–160 lm |
| Viewing Angle | 140 ° |
| CRI | 70 |
| Lens Color | Clear |
| Operating Temperature | -35 °C to 85 °C |
| Packaging | Anti-static Packaging |
| Lifespan | 30,000–50,000 Hours (Typical) |
| Warranty Period | 2-Year |
Documents
Product Features
- 99.99% gold wire bonding
- High optical output
- Industry standard moisture sensitivity
- Copper lead frame with silicone dome lens
- Low-voltage DC operated
- Lead-free reflow compatible
Mechanical Dimensions
- The slug is electrically isolated from both the anode and cathode. Electrical insulation is required between the LED’s mounting surface and the heat sink/board.
- Drawing not to scale.
- All dimensions are in millimeters.
- Unless otherwise indicated, tolerances are ± 0.2 mm.
- Avoid applying any force, impact, or pressure to the LED lens, as this will lead to catastrophic failure.
- To ensure continuous improvement, the product’s appearance and specifications may be updated without notice.
Flux Characteristics at 350 mA, Temperature = 25 ℃
Radiation Pattern | Part Number | Emitting Color | Luminous Flux (lm) | |
Min | Max | |||
Lambertian | SRH-21WW35P-3000GK | Warm White | 140 lm | 160 lm |
- Siro Electronics maintains a tolerance of ± 5% on flux measurements.
- To prevent damage, do not drive the device at its rated current for more than one second without an adequate heat sink.
Optical Characteristics at 350 mA, Temperature = 25 ℃
Emitting Color | Color Temperature (K) | Viewing Angle | |
Min | Max | ||
Warm White | 2800 K | 3200 K | 140 ° |
- Siro Electronics maintains a tolerance of ± 5% for CCT measurements.
Electrical Characteristics at 350 mA, Temperature = 25 ℃
Emitting Color | Forward Voltage | |
Min | Max | |
Warm White | 3.0 V | 3.4 V |
- Siro Electronics maintains a tolerance of ± 0.1 V for voltage measurements.

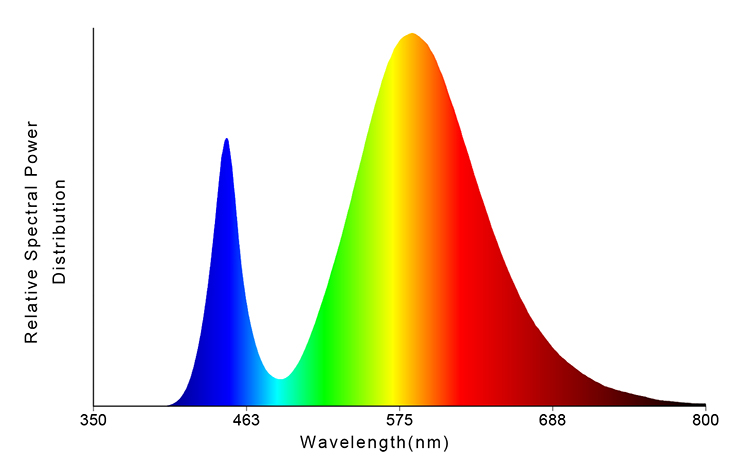

Spectral Power Distribution (SPD), Temperature = 25 ℃
Soldering Instructions
- Lead-free reflow soldering is strongly recommended. (J-STD-020 Compliant)
- When soldering high power LEDs, heat may impact their electrical and optical characteristics.
- During soldering, avoid applying mechanical stress to the lead frame and silicone lens at high temperatures.
- Preliminary heating should not exceed 160 °C for a maximum of 120 seconds.
- Soldering heat must not exceed 260 °C, with a maximum duration of 3 seconds.
Storage Conditions
- Store LEDs at or below 30 °C and 70% RH before opening the package.
- It is recommended that LEDs be used within one year.
- After opening the package, store LEDs in a dry box at or below 30 °C and 30% RH.
- If the moisture absorbent material (silica gel) has faded or the LEDs have exceeded their storage time, perform a baking treatment at 60 °C ± 5 °C for 48 hours.
Electrostatic Discharge (ESD) Precautions
- Static electricity or surge voltage can damage high power LEDs. We recommend using a wrist strap or anti-static gloves when handling them.
- Ensure your soldering iron tip is grounded and install an ionizer in areas where there is a risk of static electricity.
- All devices, equipment, and machinery must be properly grounded to ensure their safe operation. Additionally, surge protection measures are recommended for equipment that mounts high power LEDs.
Thermal Management
- To ensure optimal performance and longevity, the LED operating current must be determined based on the maximum ambient temperature.
- When designing the PCB, consider the heat generation of the LED.
- LEDs must be mounted on an MCPCB, a heat sink, or have a thermal pad applied.

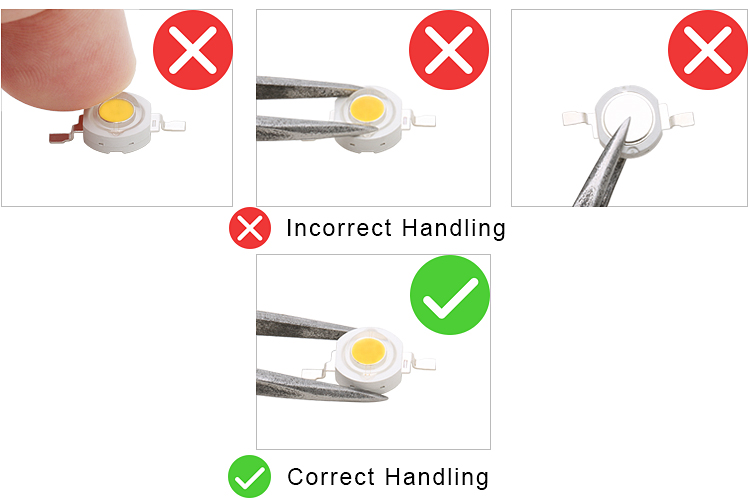

Handing LEDs
We recommend the following guidelines for handling LEDs or assemblies containing them at all times:
- When handling LEDs with tools like tweezers or nippers, avoid applying mechanical force directly to the LED’s surface.
- Do not directly touch the LED lens surface with your hands. This may contaminate the lens and affect its optical characteristics.
- Always handle LEDs from the sides. Applying force or scratching the surface can damage the molding material or break internal wires.
